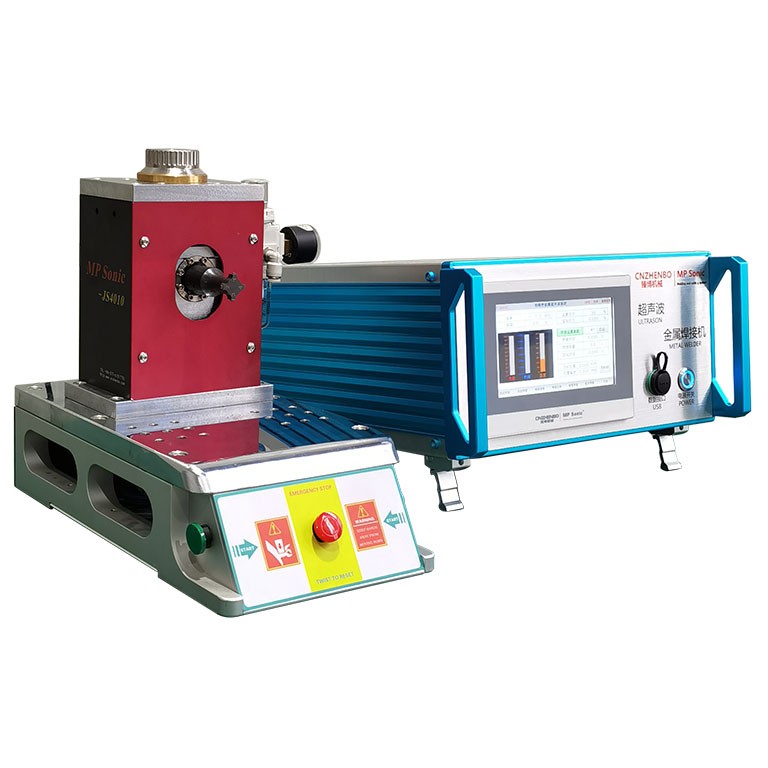

MSP-JS4010 is an ultrasonic metal welding machine designed my MP Sonic. China applies 40KHz ultrasonic system for welding metal pieces in small size. Machine applies anti-resonance ultrasonic system for high welding ability in stability under high pressure loading. Machine can be applied to welding metal sheet or splicing metal cable harness.

---

I. Feature:

1.MP Sonic anti-resonance ultrasonic system is applied for high welding ability in stability;

2. Welding depth can be adjusted in accuracy meeting different welding volume;

3. Welding mode can be selected from time mode or energy mode;

4. Ultrasonic amplitude is adjustable by 1% from 0 to 100%;

5. Horn test mode is designed for welding tooling test and analysis;

6. Formula system is designed to store welding parameters for different products;

7. Graphic supervision system is designed to show machine output in time;

8. Record system is designed for welding history and alarm history;

9. Multiple protection designed to machine system including over voltage protection, overloading protection, over impedance protection, wrong frequency protection, etc;

10. Intime frequency automatic tuning system make system adjust output according to welding tooling in time working state;

11. Welding data can be loaded by USB for back up.

---

II. Optional Feature:

1.       Close-lost depth welding mode for welding control in precision;

2.       MES system for network of factory management and remote service by I-cloud system.

---

III. Specification:

1. Model ID: MSP-JS4010;

2. Electric Supply: 220V, 1P, AC, 50/60Hz;

3. Air Supply: 0.5~0.8MPa;

4. Ultrasonic Specification: 40KHz, 1000W;

5. Ultrasonic Output Peak Value: max to 1200W;

6. Machine Measurement: L44*W27*H33 (mm);

7. Generator Measurement: L36*W46*H24 (mm)
